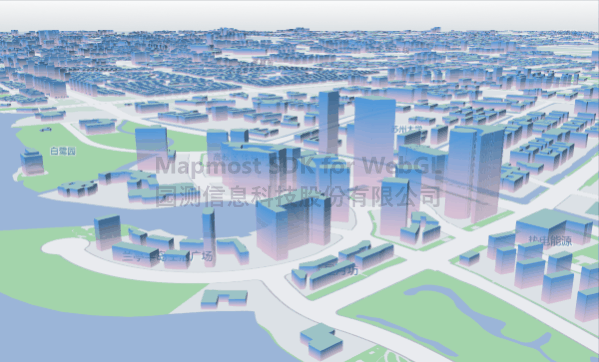

三维建筑渐变效果

可以设置三维建筑侧面的渐变色效果。

show
<!DOCTYPE html>
<html>
<head>
    <title>三维建筑渐变</title>
    <meta charset='utf-8'>
    <meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=no">
    <script src="https://delivery.mapmost.com/cdn/sdk/webgl/v9.4.1/mapmost-webgl-min.js"></script>
    <style>
        body {
            margin: 0;
            padding: 0;
        }

        #map {
            position: absolute;
            top: 0;
            bottom: 0;
            width: 100%;
        }
    </style>
</head>
<body>
    <div id="map">
    </div>
    <script>
        let map = new mapmost.Map({
            "center": [ 120.69011901264776, 31.317389422051022 ],
            "zoom": 14.768414365772978,
            "bearing": -41.900227899715446,
            "pitch": 64,
            container: 'map',
            style: "<your style url>",
            sky: 'light',
            userId: '***', // 授权码
        });

        map.on('load', () => {

            // 加载三维建筑
            map.addLayer({
                "id": "buliding",
                "type": "fill-extrusion",
                "source": "cultural",
                "source-layer": "b_buildings",
                "minzoom": 0,
                "maxzoom": 22,
                "paint": {
                    "fill-extrusion-height": ["get","jzzgdgd"],
                    "fill-extrusion-opacity": 1.0,
                    "fill-extrusion-color-top": "rgba(156,195,198,1)", // 顶面颜色
                    "fill-extrusion-color-side": [ // 侧面颜色
                        "interpolate",
                        ["linear"],
                        ["fill-extrusion-progress"],
                        0, "rgba(218,99,161, 0.5)",
                        1, "rgba(76, 153, 221, 1.0)",
                    ]
                }
            })
        })
    </script>
</body>
</html>
