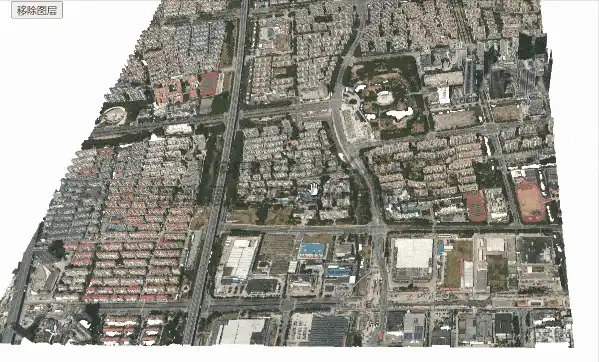

Load with geometry compression3DTiles

Loading tilt data containing geometric compression models requires settingsloadOptionsparameter.

show
   <!DOCTYPE html>
   <html>
   <head>
       <meta charset="utf-8"/>
       <title>Load with geometry compression3DTilesModel</title>
       <meta name="viewport" content="initial-scale=1,maximum-scale=1,user-scalable=no"/>
       <style>
           body {
               margin: 0;
               padding: 0;
           }

           #map {
               position: absolute;
               top: 0;
               bottom: 0;
               width: 100%;
           }

            .btn-group {
                   position: absolute;
                   top: 20px;
                   left: 20px;
               }
       </style>
       <script src="https://delivery.mapmost.com/cdn/sdk/lite/v9.1.0/mapmost-lite-min.js"></script>
   </head>
   <body>
   <div id="map"></div>
   <script>
      var map = new mapmost.Map({
       container: 'map',
       style: "<your style url>",
       center: [120.74449559193792, 31.30775326748954],
       zoom: 16,
       pitch: 60,
       userId: '***', // Authorization code,This parameter must be added
     });

    map.on('load', function () {
        const TILESET_URL = "<your 3dtiles url>";
        map.add3dTilesLayer(
            {
                id: 'tile-3d-layer',
                data: TILESET_URL,
                loadOptions:{
                    draco:{//Load tilt data containing geometrically compressed models
                        libsUrl:"http://******/draco",//The resource has been uploaded and can be used on demand. You need to pass in the absolute path when using it.
                    }
                }
            }
        )
    })

    function removeLayer() {
        map.removeLayer('tile-3d-layer')
    }
   </script>
   </body>
   </html>
