Introduction

Mapmost SDK Lite

Mapmost SDK LiteyesMapmostAn important part of the series is designed for lightweight development based on WebGL Realize integrated rendering of 2D and 3D mapsJavaScript library. This engine supportsH5Development mode, the developed applications can run on mobile browsers, applets andAPPInside.

Ability description

1. Supported data sources and coordinate systems

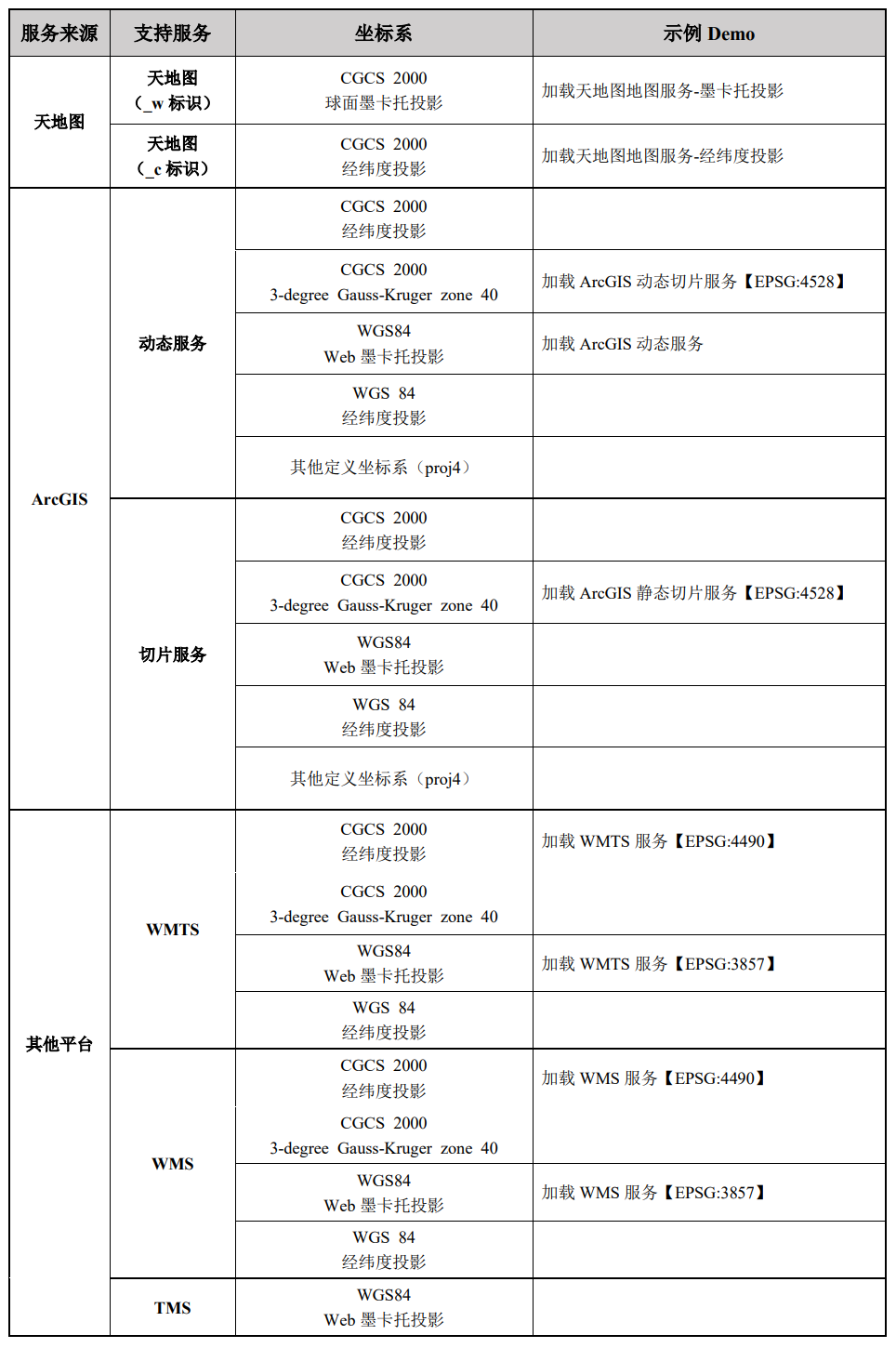

（1）Raster map service

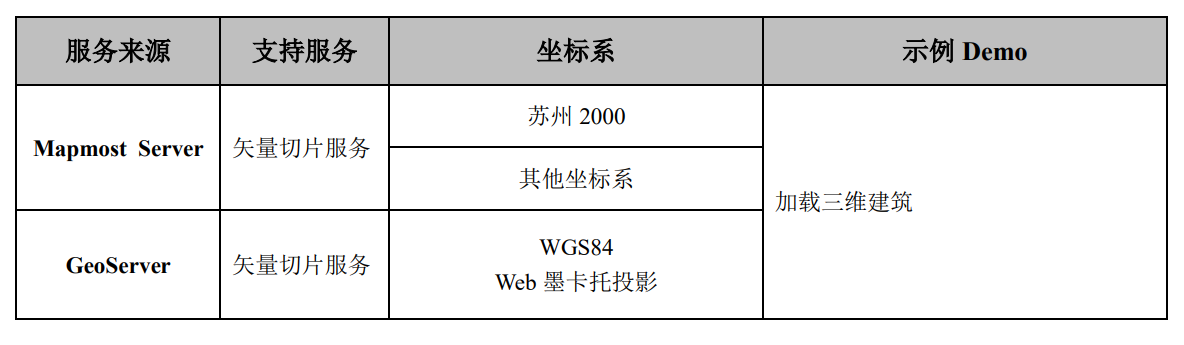

（2）vector map service

illustrate:Mapmost For details on the map publishing platform, see https://www.mapmost.com/en/product/studio

（3）vector data

• supportGeoJSON（EPSG:4490/EPSG:4326）data

（4）3D model

• gltf/ glb Format 3D model
• obj Format 3D model
• fbx Format 3D model

（5）Skewed data model

• Depend onCesiumlabpublished3DTiles（Not supportedcmptFormat)

3. Supporting core competencies

• Secondary development of map layer visualization
• 3D objects/Scenario secondary development
• Secondary development of data-driven three-dimensional thematic analysis maps
• 3D model/scene with2.5DFusion rendering of maps
• Integration of video and 3D map
• Oblique data loading rendering
• High-performance loading and single-unit selection of tens of millions of three-dimensional components
• CGCS 2000support
• Support multiple coordinate system raster service access

4. Not applicable

• It is necessary to load a raster map published by a third party that cannot support coordinate systems, and does not have access to spatial data sources.
• Need to load more than1G3D model of

Hardware configuration

Classification	Standard configuration	Recommended configuration
CPU	Intel Core i5 Equivalent or higher configuration	Intel Core i7 Equivalent or higher configuration
GPU	Nvidia GeForce GTX 1060	Nvidia GeForce RTX 3060
Video memory	3GB	8GB
Memory	8GB	16GB
operating system	Windows 10 64bit operating system	Windows 10 64bit operating system
Browser	Chrome 90+，turn onWebGLcharacteristic	Latest version, openWebGLcharacteristic

Please selectChrome 73and above versions, supportH5develop(Android 10+ & IOS 12+）
