Dashed line layer

Supports adding dotted line layers.

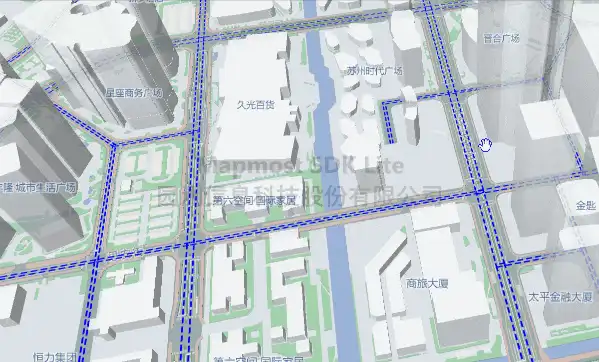

show
<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8" />
    <title>Dashed line layer</title>
    <meta name="viewport" content="initial-scale=1,maximum-scale=1,user-scalable=no" />
    <style>
        body {
            margin: 0;
            padding: 0;
        }

        #map {
            position: absolute;
            top: 0;
            bottom: 0;
            width: 100%;
        }
    </style>
    <script src="https://delivery.mapmost.com/cdn/sdk/lite/v9.1.0/mapmost-lite-min.js"></script>
</head>

<body>
    <div id="map"></div>
    <script>
        let map = new mapmost.Map({
            container: 'map',
            style: "<your style url>",
            center: [120.7167750088779, 31.323951343532258],
            zoom: 14.907143631939364,
            pitch: 59.48725112156901,
            bearing: -54.10626584095007,
            userId: '***', // Authorization code,This parameter must be added
        });
        map.on('load', function () {
            map.addSource('road', {
                "type": "geojson",
                 data: "../example_data/road_seg.geojson"
            })
            map.addLayer({
                "id": "road",
                "type": 'line',
                "source": "road",
                "layout": {
                    // "line-cap":'square'
                },
                "paint": {
                    // "line-blur":5,  // Line blur
                    "line-width": 2,
                    "line-color": "rgb(0, 0, 255)",
                    "line-dasharray": [2, 1],// dotted line  2m Just separate1unit length gap
                    // "line-gap-width":10, // Draws a line outside the actual path of the line.10Represents the width of the internal gap
                    // "line-offset":100,
                }
            })
        })

    </script>
</body>

</html>
